2 Pin 3 Pin Rocker Switches

Find a huge selection of 2 Pin 3 Pin Rocker Switches from China at WEIPENG®. You can rest assured to buy 2 Pin 3 Pin Rocker Switches from our factory and we will offer you the best after-sale service and timely delivery.

Model:GQ116-2-02

Send Inquiry

Product Description

WEIPENG® is the 2 Pin 3 Pin Rocker Switches supplier from China.

Tongda Wire Electric 2 Pin 3 Pin Rocker Switches Introduction

2 Pin 3 Pin Rocker Switches is also known as waveform switch, stick switch, rocker switch, IO switch, power switch, because it looks like a boat, so called boat switch, its structure and toggle switch is roughly the same, only the knob is changed into a boat.

Tongda Wire Electric 2 Pin 3 Pin Rocker Switches Classification

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		10(1.5)A/16(3)A/10(3)A 250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1500V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		0~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm: Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa

Tongda Wire Electric 2 Pin 3 Pin Rocker Switches Feature And Application

Small household appliances and other products, such as water dispenser, treadmill, printer, TV, computer speaker, battery car, motorcycle, ion TV, coffee pot, plug, massage machine, electric fan, electric oil, heater.

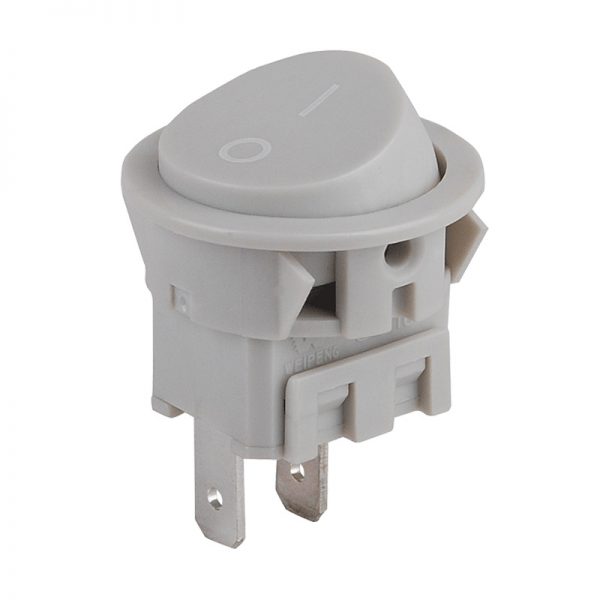

Tongda Wire Electric 2 Pin 3 Pin Rocker Switches Details
