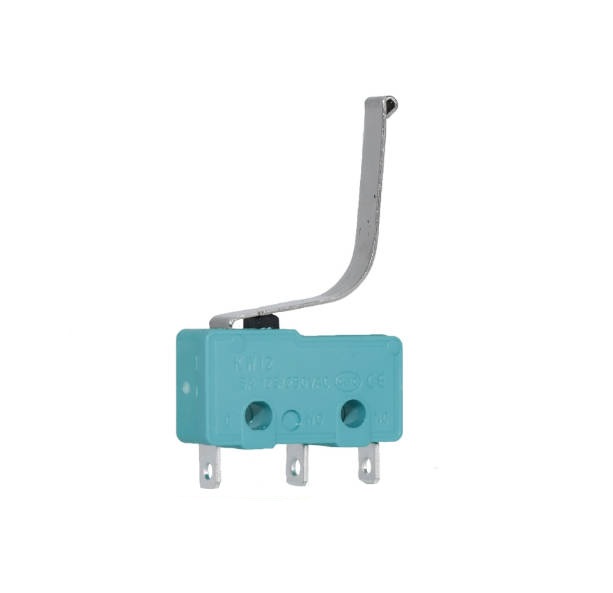

Green Micro Switch Quick Connect

Green Micro Switch Quick Connect has a small contact interval and a quick action mechanism, and the contact mechanism for switching action with the specified stroke and force is covered by the shell, and there is a transmission on the outside, and the shape is small.

Model:HK-04G-259

Send Inquiry

Product Description

WEIPENG® is a leading Micro Switch For Equipments Roller Lever manufacturers, suppliers and exporter.

Tongda Green Micro Switch Quick Connect Introduction

Micro switches can be found in automotive seat belts, providing feedback on buckling status.They are employed in robotic arms and automation systems, providing control and feedback.They are used in industrial ovens and furnaces, ensuring precise control and accurate temperature regulation.Micro Switch can be used with other equipment to achieve complex control functions. Suitable for different voltage and current requirements. Can be customized according to the needs of the design, to meet special needs.

Tongda Green Micro Switch Quick Connect Application

Micro switches are widely used in various fields. The following are several main application areas: Electronic equipment: Micro switches are often used in electronic equipment, such as computers, mobile phones, tablets, etc. They can be used to control power switches, function keys, volume buttons, and more. Home appliances: Micro switches are also widely used in home appliances, such as TVs, air conditioners, washing machines, refrigerators, etc. They can be used to control electrical switches, protection devices, etc.

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5(2)A 125V/250VAC 10(3)125V/250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature : 235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、CE
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa
