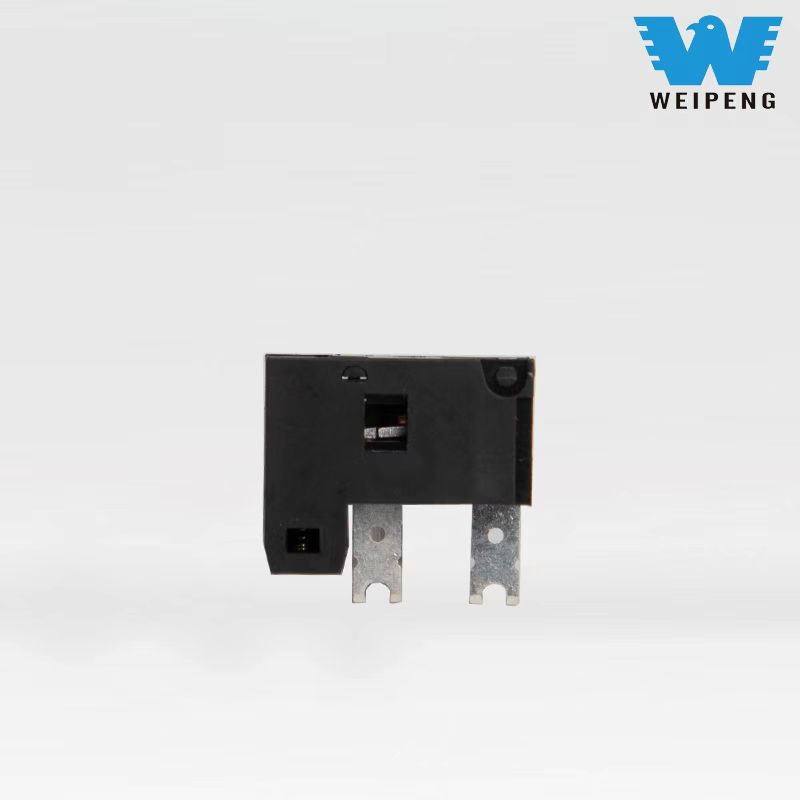

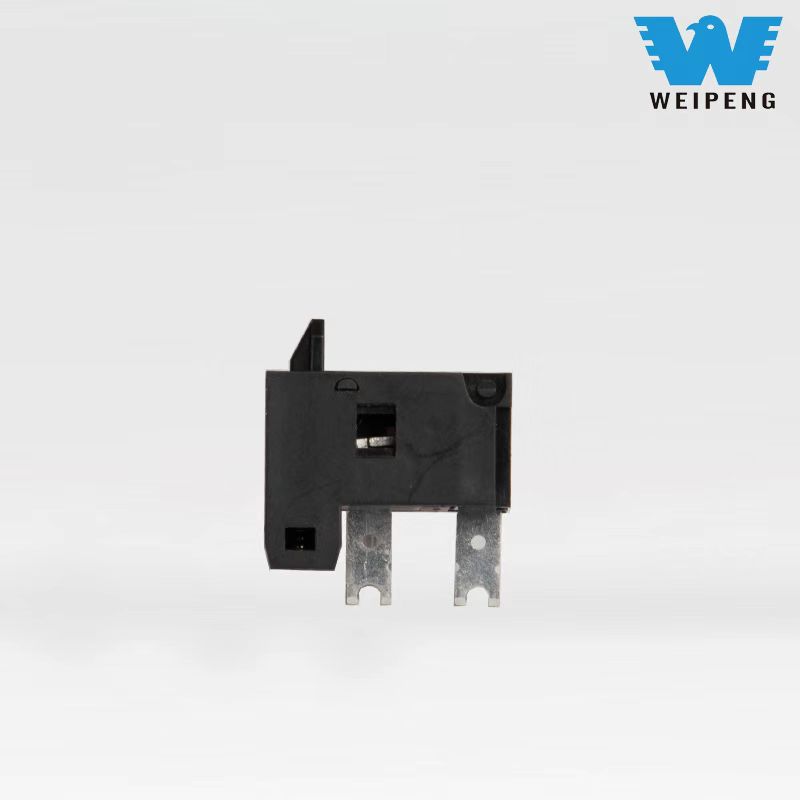

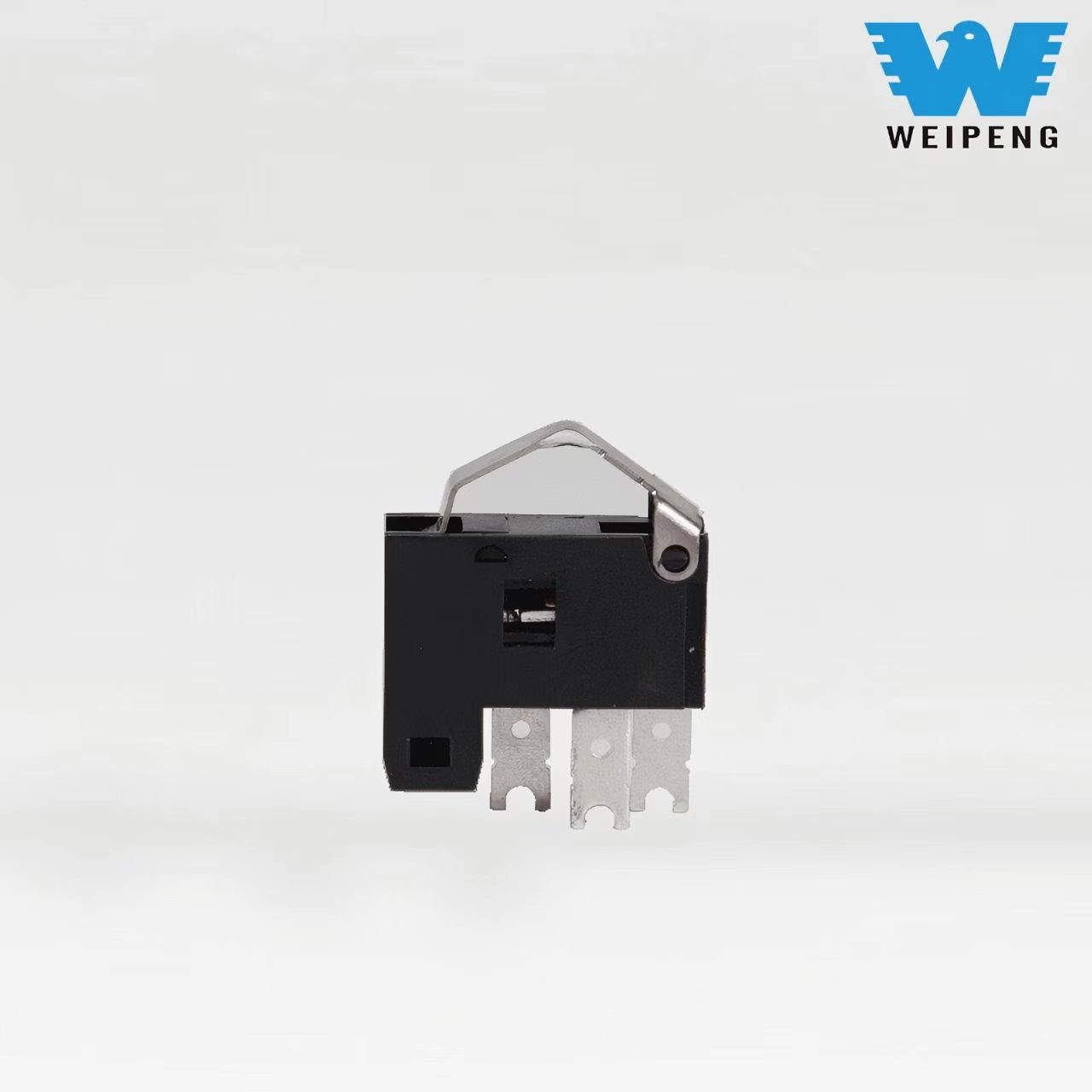

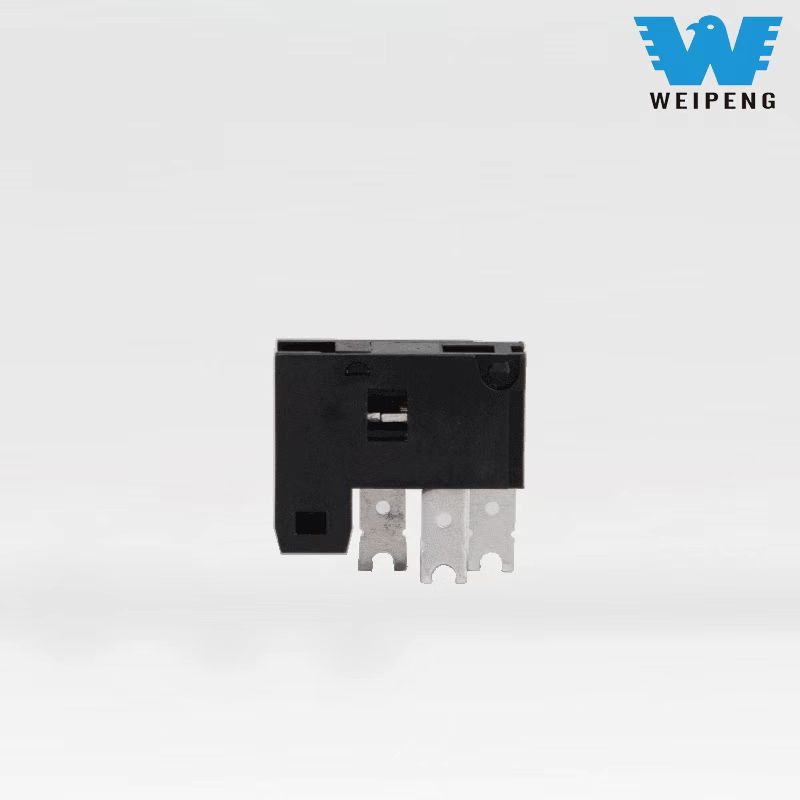

Auto-Return Micro Switch

Mini Micro Switches for Home Appliance is offered by China manufacturers WEIPENG®. Our competitive pricing and popularity in the European and American markets make us an ideal long-term partner for your Household appliances ultra-small micro switch needs in China.

Model:HK-25-010

Send Inquiry

Product Description

WEIPENG® is a leading China Auto-Return Micro Switch for Home Appliance manufacturers, suppliers and exporter.

Tongda Gear Auto-Return Micro Switches for Home Appliance Introduction

The micro switch can basically change the contact at the same position even if the open/close operation process is continuous, so the position detection error is small, and it can be used in the scope of application that requires precision machining. This is also a unique advantage of microswitches with a snap-action mechanism.

Tongda Gear Auto-Return Micro Switches for Home Appliance Parameter (Specification)

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating1		1A 24VDC/3A 24VDC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (24VDC)
4	Dielectric Voltage	Between non-connected terminals	500V/5mA/60S
		Between terminals and the metal frame	1500V/5mA/60S
5	Electrical Life		≥500000 cycles
6	Mechanical Life		≥1000000 cycles
7	Operating Temperature		-40~85℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature : 235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、CE
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa
