Ice Maker Waterproof Micro Switch

WEIPENG® has established itself as a top-tier ice maker waterproof micro switch manufacturer and supplier in China, providing quality ice maker waterproof micro switch solutions for many years. Our competitive pricing and popularity in the European and American markets make us an ideal long-term partner for your ice maker waterproof micro switch needs in China.

Model:HK-14-16AP-613

Send Inquiry

Product Description

WEIPENG® is a professional China Ice Maker Waterproof Micro Switch manufacturers and suppliers, if you are looking for the best Ice Maker Waterproof Micro Switch with low price, consult us now!

Tongda Wire Electric Ice Maker Waterproof Micro Switch Parameter (Specification)

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5（2)A/10A/16(3)A/21（8）A 250VAC
2	Contact Resistance		≤30mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1000V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥50000 cycles
6	Mechanical Life		≥1000000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency : 10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering : 300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa

Tongda Wire Electric ice maker waterproof micro switch Feature And Application

1. A dependable and trustworthy basic switch
2. Sleek design and compact build.
3.Features include minimal contact gap, swift response, heightened 4.sensitivity, and minimal operating distance.
5.Extended lifespan and superior dependability.
6.Diverse contact terminals available.
7.Various temperature ratings provided.
8.Assortment of levers to choose from.
9.Utilizes thermosetting or thermoplastic materials.
10.Widely utilized in household appliances, electronic equipment, 11.automatic machines, communication devices, automotive electronics, apparatus and instruments, electric power tools, and more.

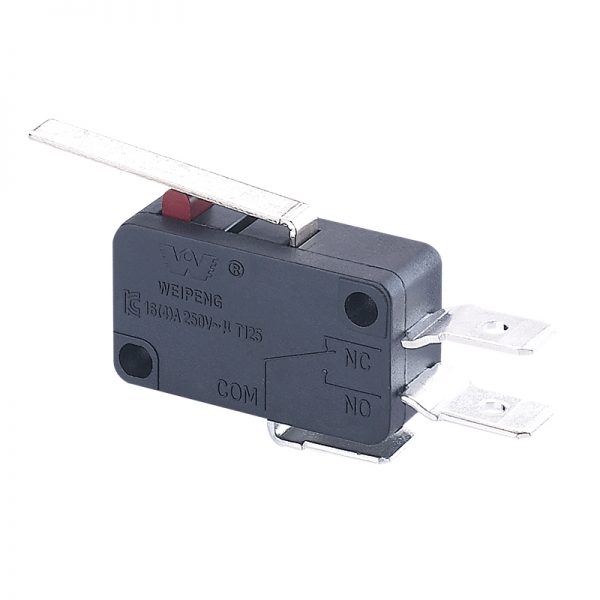

Tongda Wire Electric Ice Maker Waterproof Micro Switch Details
