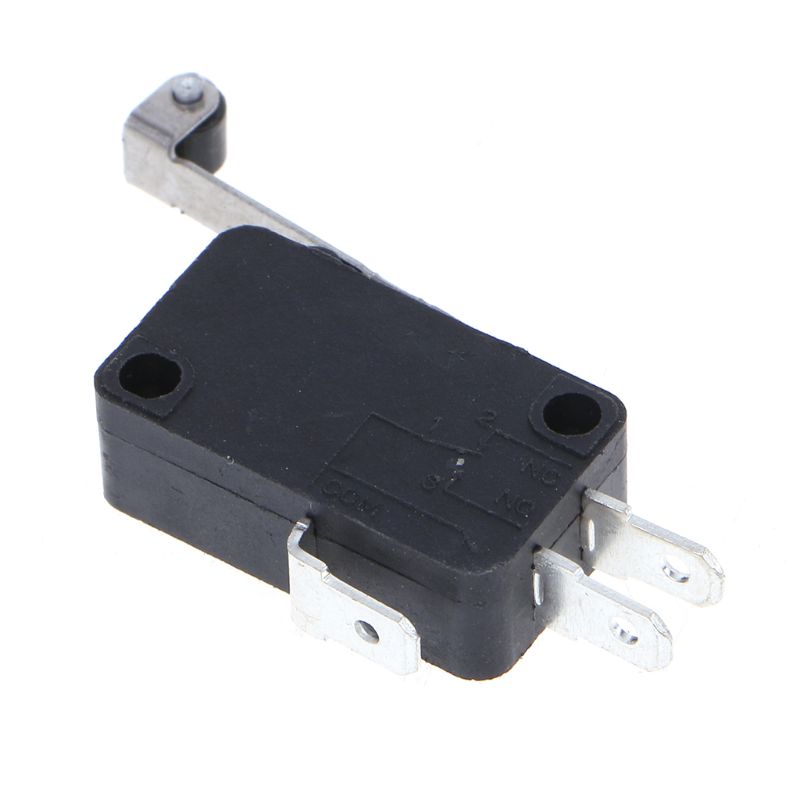

Micro Switch for Food Processing Light Switches Plug

Micro Switch for Food Processing Light Switches Plug has a small contact interval and a quick action mechanism, and the contact mechanism for switching action with the specified stroke and force is covered by the shell, and there is a transmission on the outside, and the shape is small

Model:HK-14-4578

Send Inquiry

Product Description

WEIPENG ® is one of the leading in the manufacturing suppliers and exporter of Micro switches in China

Tongda Micro Switch for Food Processing Light Switches Plug Introduction

Micro switches, also known as snap action switches, are small electromechanical devices commonly used in various appliances, vehicles, machinery, and electronic devices.Micro switches are commonly employed in vending machines, ensuring reliable operation and control of dispensing mechanisms.

Tongda Micro Switch for Food Processing Light Switches Plug Application

Micro switches are widely used in various fields. The following are several main application areas: Electronic equipment: Micro switches are often used in electronic equipment. They can be used to control power switches, function keys, volume buttons, and more. Home appliances: Micro switches are also widely used in home appliances, such as TVs, air conditioners, washing machines, refrigerators, etc. They can be used to control electrical switches, protection devices, etc. Automotive industry. In addition, they can also be used for the adjustment of car seats, the adjustment of rearview mirrors and other functions. Mechanical equipment. Security system.

In conclusion, micro switches have important applications in many fields and can play a key role in control, sensing and protection.

Tongda Micro Switch for Food Processing Light Switches Plug Parameter (Specification)

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5（2)A/10A/16(3)A/21（8）A 250VAC
2	Contact Resistance		≤30mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1000V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥50000 cycles
6	Mechanical Life		≥1000000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency : 10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering : 300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa
