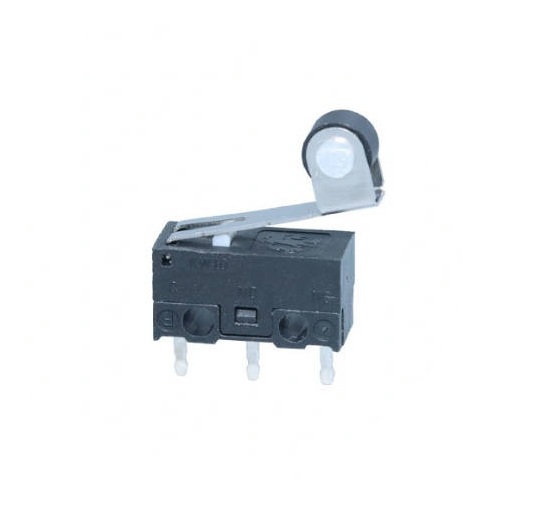

Micro Switch Roller Lever Mini Type

Micro Switch Roller Lever Mini Type by China manufacturers WEIPENG®. Our competitive pricing and popularity in the European and American markets make us an ideal long-term partner for your Household appliances ultra-small micro switch needs in China.

Model:HK-04G-258

Send Inquiry

Product Description

WEIPENG® is a leading Micro Switch For Equipments Roller Lever manufacturers, suppliers and exporter.

Tongda Micro Switch Roller Lever Mini Type Introduction

Micro switches can be found in automotive seat belts, providing feedback on buckling status.They are employed in robotic arms and automation systems, providing control and feedback.They are used in industrial ovens and furnaces, ensuring precise control and accurate temperature regulation.Micro Switch have variety of materials can be selected to meet various needs. Widely used to meet the needs of different industries and applications. Stable electrical performance, not easy to produce fault. Light Operation Force can reduce artificial fatigue.

Tongda Micro Switch Roller Lever Mini Type Application

Micro switches are widely used in various fields. The following are several main application areas: Electronic equipment: Micro switches are often used in electronic equipment, such as computers, mobile phones, tablets, etc. They can be used to control power switches, function keys, volume buttons, and more. Home appliances: Micro switches are also widely used in home appliances, such as TVs, air conditioners, washing machines, refrigerators, etc. They can be used to control electrical switches, protection devices, etc.

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5(2)A 125V/250VAC 10(3)125V/250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature : 235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、CE
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa
