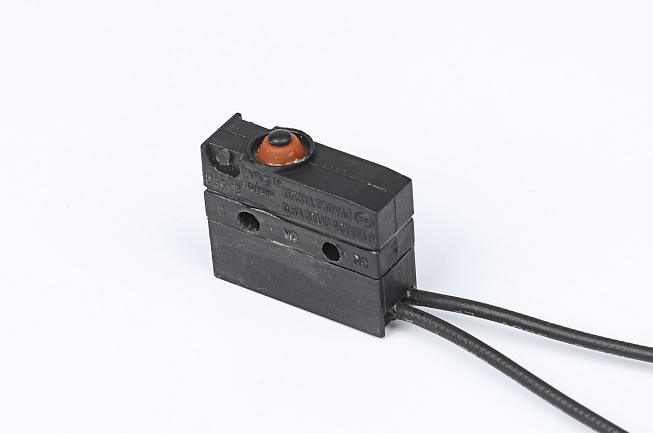

Normally on Micro Switch Waterproof

Normally on Micro Switch Waterproof has a small contact interval and a quick action mechanism, and the contact mechanism for switching action with the specified stroke and force is covered by the shell, and there is a transmission on the outside, and the shape is small

Model:FSK-18-454

Send Inquiry

Product Description

WEIPENG® is a leading Normally on Micro Switch Waterproof manufacturers, suppliers and exporter.

Tongda Normally on Micro Switch Waterproof Introduction

Waterproof micro switches have high sensitivity. It triggers a precise switching action with a small force. Waterproof micro switches are suitable for use as control switches in electronic equipment. It can realize the switch, start, stop and other functions of the equipment.

Tongda Normally on Micro Switch Waterproof Application

Agricultural field: suitable for liquid level monitoring and control in irrigation systems, spraying equipment, and farming equipment. Entertainment and game fields: suitable for switch control of amusement equipment, game consoles and other devices. Electronic products and electrical equipment field: suitable for switch control in electronic products and electrical equipment such as televisions, stereos, and electronic switches. Ocean engineering and ship fields: suitable for liquid level monitoring and control on ocean engineering equipment and ships, such as tank liquid level and hull tilt detection, etc. Environmental monitoring and instrumentation field: suitable for liquid level monitoring and control, such as water quality monitoring equipment, weather stations, instruments and meters, etc. In general, the waterproof micro switch is suitable for occasions that need to work in a wet, humid or water-polluted environment, and can effectively protect the normal operation of the switch, and has a wide range of application fields

Tongda Normally on Micro Switch Waterproof Parameter (Specification)

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		0.1A 5(2)A 10(3)A 125/250VAC 0.1A 5A 36VDC
2	Operating Force		1.0~2.5N
3	Contact Resistance		≤300mΩ
4	Insulation Resistance		≥100MΩ (500VDC)
5	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
6	Electrical Life		≥50000 cycles
7	Mechanical Life		≥100000 cycles
8	Operating Temperature		-25~105℃
9	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
10	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
11	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
12	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa
