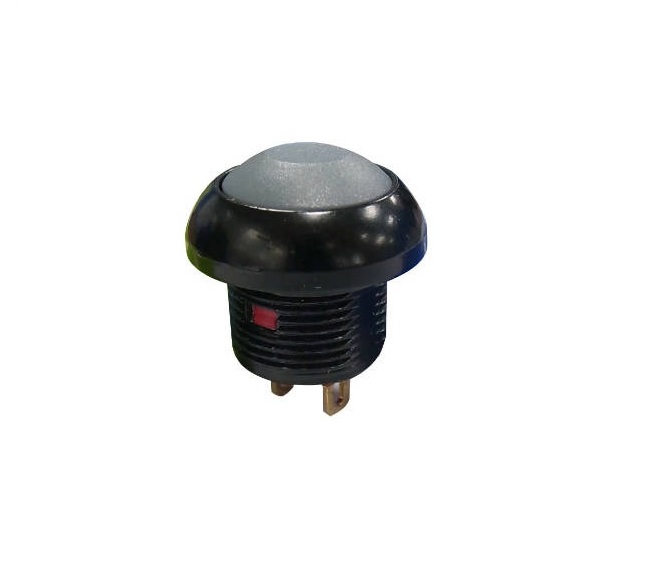

Push Button Switch Dust-Proof Waterproof Power Switch

Push Button Switch Dust-Proof Waterproof Power Switch has a small contact interval and a quick action mechanism, and the contact mechanism for switching action with the specified stroke and force is covered by the shell, and there is a transmission on the outside, and the shape is small.

Model:GNY-11-154

Send Inquiry

Product Description

WEIPENG® is a leading manufacturers, suppliers and exporter for Push Button Switch

Tongda Push Button Switch Dust-Proof Waterproof Power Switch Introduction

Push button switch is a common electronic component used to control the on and off state of a circuit. It usually consists of a button and a switch that changes state when the button is pressed.

Push button switches can have self-locking or non-self-locking designs to meet different control needs.

Tongda Push Button Switch Dust-Proof Waterproof Power Switch Application And Specification

Push button switches can be used to control the light, when the button is pressed, the light will turn on or off. It can also be used to control the switch of electrical equipment,air conditioner, etc. In the industrial field, push button switches are widely used to control the start and stop of mechanical equipment.whether it is household, industrial, automotive or electronic equipment, it is inseparable from this simple control component.

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		16 (3)A 125V/250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
5	Electrical Life		≥50000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		0~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、TUV、CQC、CE
13	Test Conditions		Ambient Temperature : 20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa
