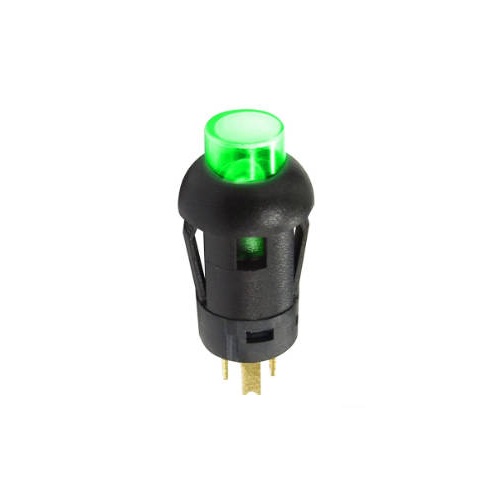

Push Button Switch Momentary Lock Electrical

Push Button Switch Momentary Lock Electrical by China manufacturers WEIPENG®. Our competitive pricing and popularity in the European and American markets make us an ideal long-term partner for your Household appliances ultra-small micro switch needs in China.

Model:GNY-11--352

Send Inquiry

Product Description

WEIPENG® is a leading manufacturers, suppliers and exporter for Push Button Switch

Tongda Push Button Switch Momentary Lock Electrical Introduction

Push button switch is a common electronic component used to control the on and off state of a circuit. It usually consists of a button and a switch that changes state when the button is pressed.

The push button switch material is durable and durable. Variety of colors: Push button switches are usually available in a variety of different colors to meet different functions and application needs.

Tongda Push Button Switch Momentary Lock Electrical Application And Specification

Push button switches can be used to control the light, when the button is pressed, the light will turn on or off. It can also be used to control the switch of electrical equipment,air conditioner, etc. In the industrial field, push button switches are widely used to control the start and stop of mechanical equipment.whether it is household, industrial, automotive or electronic equipment, it is inseparable from this simple control component.

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		16 (3)A 125V/250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
5	Electrical Life		≥50000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		0~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、TUV、CQC、CE
13	Test Conditions		Ambient Temperature : 20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa
