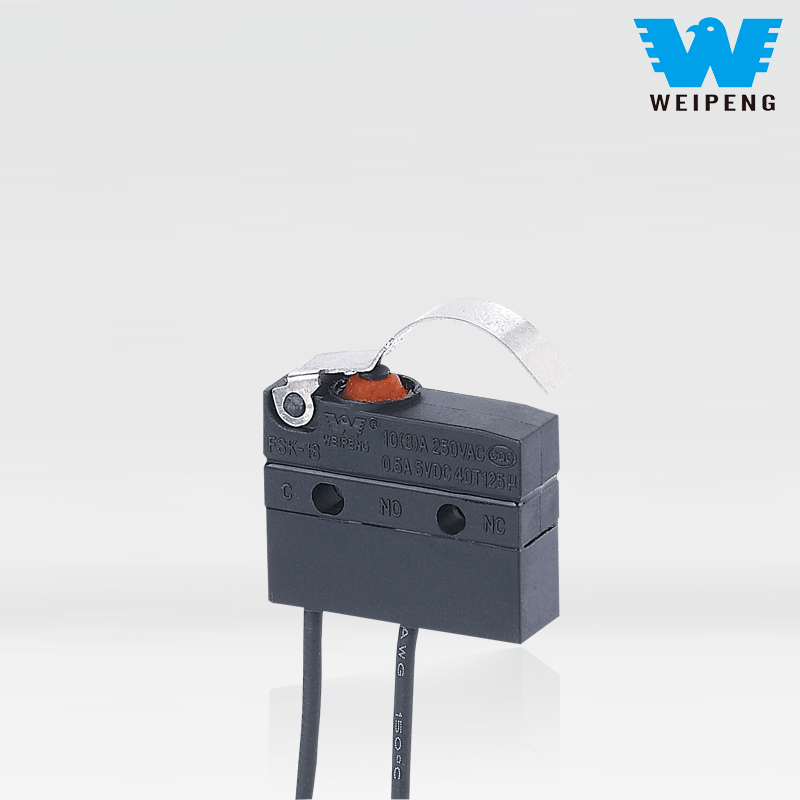

Waterproof Micro Switch Sensitive Wire With Roll Lever

Waterproof Micro Switch Sensitive Wire With Roll Lever has a small contact interval and a quick action mechanism, and the contact mechanism for switching action with the specified stroke and force is covered by the shell, and there is a transmission on the outside, and the shape is small

Model:FSK-18-D-024

Send Inquiry

Product Description

WEIPENG® is a leading China Waterproof Micro Switch Sensitive Wire With Roll Lever manufacturers, suppliers and exporter.

Tongda Waterproof Micro Switch Sensitive Wire With Roll Lever Introduction

The Waterproof micro switch is a common switch device, which has the characteristics of waterproof, dustproof and durable. Here are 30 introductions about waterproof micro switches: The waterproof micro switch adopts a special sealing structure and waterproof material, which can prevent water and moisture from affecting the inside of the switch. It has good dustproof performance, which can prevent impurities such as dust and particles from entering the inside of the switch. Waterproof basic switches are generally highly durable and can withstand long-term use and various harsh environments. It is anti-vibration and shock-resistant, and can work normally in vibration and shock environments.

Tongda Waterproof Micro Switch Sensitive Wire With Roll Lever Application

Household appliances：Waterproof micro switches are widely used in household appliances, such as washing machines, refrigerators, air conditioners, etc. Its waterproof performance can protect the normal operation of the switch in wet environment.

Tongda Waterproof Micro Switch Sensitive Wire With Roll Lever Parameter (Specification)

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		0.1A 5(2)A 10(3)A 125/250VAC 0.1A 5A 36VDC
2	Operating Force		1.0~2.5N
3	Contact Resistance		≤300mΩ
4	Insulation Resistance		≥100MΩ (500VDC)
5	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
6	Electrical Life		≥50000 cycles
7	Mechanical Life		≥100000 cycles
8	Operating Temperature		-25~105℃
9	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
10	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
11	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
12	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa
