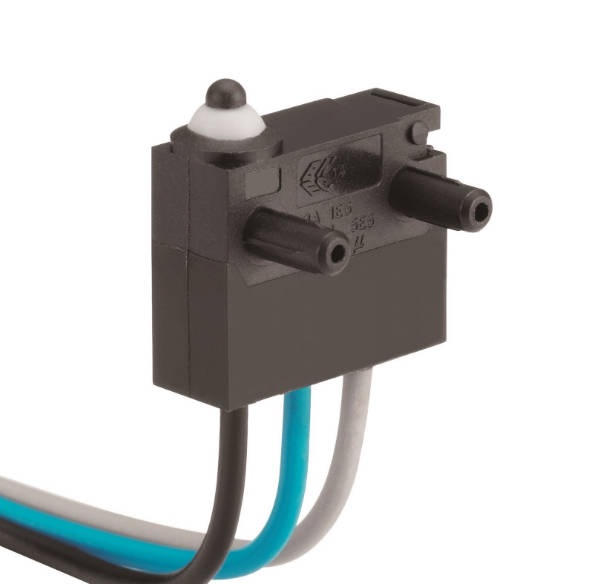

Waterproof Micro Switch Columnless

Waterproof Micro Switch Columnless has a small contact interval and a quick action mechanism, and the contact mechanism for switching action with the specified stroke and force is covered by the shell, and there is a transmission on the outside, and the shape is small.

Model:FSK-20-D-402

Send Inquiry

Product Description

WEIPENG® is a leading China Waterproof Micro Switch manufacturers, suppliers and exporter.

Tongda Waterproof Micro Switch Columnless Introduction

A waterproof switch is a specially designed switch that can prevent moisture and other liquids from penetrating inside the switch and causing short circuit or damage.

Before installation, ensure that the waterproof switch and the required power cord are properly protected and insulated.Install and remove waterproof switches using the correct tools.Avoid twisting, stretching or bending the waterproof switch to avoid damaging the internal components.Check the waterproof switch and surrounding area regularly for any signs of moisture, water stains, or leaks.Avoid water droplets, liquids, or corrosion into the switch.

Tongda Wire Electric Factory Partner

Tongda Waterproof Micro Switch Columnless Parameter (Specification)

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		0.1A 5(2)A 10(3)A 125/250VAC 0.1A 5A 36VDC
2	Operating Force		1.0~2.5N
3	Contact Resistance		≤300mΩ
4	Insulation Resistance		≥100MΩ (500VDC)
5	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
6	Electrical Life		≥50000 cycles
7	Mechanical Life		≥100000 cycles
8	Operating Temperature		-25~105℃
9	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
10	Vibration Proof		Vibration Frequency :10~55HZ Amplitude :1.5mm Three directions :1H
11	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
12	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa
