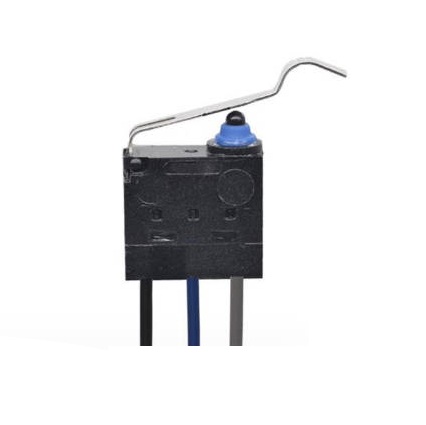

Waterproof Micro Switch Curved Lever

As the professional manufacturers, WEIPENG® would like to provide you Waterproof Micro Switch Curved Lever. And we will offer you the best after-sale service and timely delivery. For more information on the 0.1a 48VDC 125v 250VAC Waterproof Micro Switch, please feel free to contact us.

Model:FSK-20-351

Send Inquiry

Product Description

WEIPENG® is a leading China Waterproof Micro Switch Curved Lever manufacturers, suppliers and exporter.

Tongda Waterproof Micro Switch Curved Lever Introduction

The principle of a waterproof micro switch involves the application of external mechanical forces on the action reed via transmission components like push pins, buttons, levers, and rollers. As the action reed moves to a critical point, it generates instantaneous action, which causes the moving contact at the end of the action reed to be quickly connected or disconnected from the fixed contact.
When the force acting on the transmission element is removed, the action reed produces a reverse acting force. As the transmission element undergoes the reverse stroke, it reaches the critical point of the reed, and the reverse action is instantly completed. These switches are designed with a small contact distance, short travel, and fast switching speed, and the moving speed of the contact is not dependent on the speed of the transmission element.

Tongda MWaterproof Micro Switch Curved Lever Feature and Application

Waterproof microswitch is widely used in all kinds of cold, wet, dust and all kinds of harsh environment. Such as automobiles, spraying equipment, etc

Switch Technical Characteristics:
ITEM	Technical parameter		Value
1	Electrical Rating		0.1A/1A/3A 250VAC
2	Operating Force		1.0~2.5N
3	Contact Resistance		≤300mΩ
4	Insulation Resistance		≥100MΩ (500VDC)
5	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
6	Electrical Life		≥50000 cycles
7	Mechanical Life		≥100000 cycles
8	Operating Temperature		-25~105℃
9	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
10	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude : 1.5mm; Three directions :1H
11	Solder Ability :More than 80% of immersed part shall be covered with solder		Soldering Temperature : 235±5℃ Immersing Time :2~3S
12	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa
