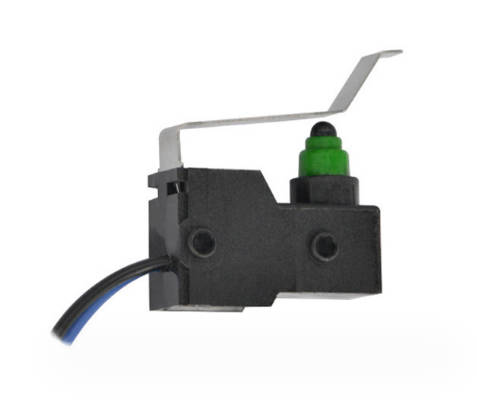

Waterproof Micro Switch Electric Toys

Waterproof Micro Switch Electric Toys by China manufacturers WEIPENG®. Our competitive pricing and popularity in the European and American markets make us an ideal long-term partner for your Household appliances ultra-small micro switch needs in China.

Model:FSK-20-343W

Send Inquiry

Product Description

WEIPENG® is a leading China manufacturers, suppliers and exporter of waterproof micro switch

Tongda Waterproof Micro Switch Electric Toys Introduction

Waterproof micro switches are suitable for control switches in smart homes. It can realize remote control of lights, curtains, door locks, etc.Waterproof micro switches are usually designed with low noise.When using a waterproof switch, avoid using too much or too little force. Avoid excessive vibration or collision of the waterproof switch. Avoid using damaged waterproof switches and replace them promptly. If any abnormality or malfunction occurs in the waterproof switch, it should be stopped immediately and seek professional maintenance help.

Tongda Waterproof Micro Switch Electric Toys Application

Waterproof Micro Switch are suitable for many field.Such as Agricultural field. Electronic products and electrical equipment field. Ocean engineering and ship fields. Environmental monitoring and instrumentation field。In general, the waterproof micro switch is suitable for occasions that need to work in a wet, humid or water-polluted environment, and can effectively protect the normal operation of the switch, and has a wide range of application fields

Tongda Waterproof Micro Switch Electric Toys (Specification)

Switch Technical Characteristics:
ITEM	Technical parameter		Value
1	Electrical Rating		0.1A/1A/3A 250VAC
2	Operating Force		1.0~2.5N
3	Contact Resistance		≤300mΩ
4	Insulation Resistance		≥100MΩ (500VDC)
5	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
6	Electrical Life		≥50000 cycles
7	Mechanical Life		≥100000 cycles
8	Operating Temperature		-25~105℃
9	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
10	Vibration Proof		Vibration Frequency :10~55HZ Amplitude : 1.5mm Three directions :1H
11	Solder Ability :More than 80% of immersed part shall be covered with solder		Soldering Temperature : 235±5℃ Immersing Time :2~3S
12	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa
