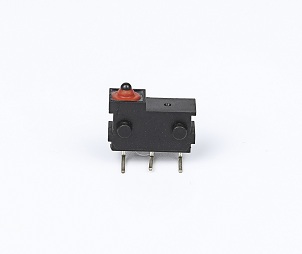

Waterproof Micro Switch Game Console

Waterproof Micro Switch Game Console by China manufacturers WEIPENG®. Our competitive pricing and popularity in the European and American markets make us an ideal long-term partner for your Household appliances ultra-small micro switch needs in China.

Model:FSK-20-146

Send Inquiry

Product Description

WEIPENG® is a leading Waterproof Micro Switch Game Console manufacturers, suppliers and exporter.

Tongda Waterproof Micro Switch Game Console Introduction

Waterproof micro switch is a kind of micro switch with waterproof performance, which is often used in electronic equipment, household appliances, automotive electrical appliances and other fields.

Waterproof micro switches are often used in water environments such as swimming pools and aquariums. It prevents the effects of moisture on switching circuits. Waterproof micro switches are often used in household appliances such as dishwashers and washing machines. It prevents moisture from penetrating into the inside of the switch during washing.

Tongda Waterproof Micro Switch Game Console Application And Specification

Tactile switches are widely used in various fields. The following are several main application areas: Electronic equipment: Micro switches are often used in electronic equipment, such as computers, mobile phones, tablets, etc. Home appliances,Automotive industry,Mechanical equipment,Security systemmicro switches have important applications in many fields and can play a key role in control, sensing and protection.

Switch Technical Characteristics:
ITEM	Technical parameter		Value
1	Electrical Rating		0.1A/1A/3A 250VAC
2	Operating Force		1.0~2.5N
3	Contact Resistance		≤300mΩ
4	Insulation Resistance		≥100MΩ (500VDC)
5	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
6	Electrical Life		≥50000 cycles
7	Mechanical Life		≥100000 cycles
8	Operating Temperature		-25~105℃
9	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
10	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude : 1.5mm; Three directions :1H
11	Solder Ability :More than 80% of immersed part shall be covered with solder		Soldering Temperature : 235±5℃ Immersing Time :2~3S
12	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa
