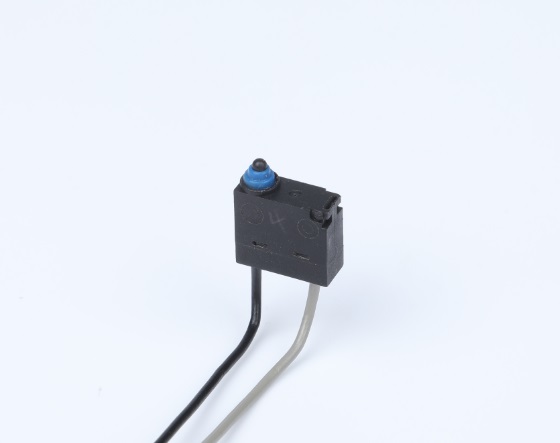

Waterproof Micro Switch Atuo Parts

As the professional manufacturers, WEIPENG® would like to provide you Waterproof Micro Switch Atuo Parts 125/250VAC. And we will offer you the best after-sale service and timely delivery. For more information on the 0.1a 48VDC 125v 250VAC Waterproof Micro Switch, please feel free to contact us.

Model:FSK-20-T-008

Send Inquiry

Product Description

WEIPENG® is a leading China Waterproof Micro Switch Atuo Parts 125/250VAC manufacturers, suppliers and exporter.

Tongda Wire Electric Waterproof Micro Switch Atuo Parts 125/250VAC Introduction

The principle of waterproof micro switch includes the application of external mechanical force to the operating spring through transmission elements such as pins, buttons, levers and rollers. When the action spring moves to the critical point, it will generate immediate action, which will cause the movable contact at the end of the action spring to quickly connect or disconnect from the permanent contact.
After removing the force acting on the transmission component, the acting spring generates the reverse force. When a transmission component experiences a reverse jump, it reaches the critical point of the spring, and the reverse action is immediately terminated. These switches are designed with small contact distance, short distance and fast switching speed, and the speed of contact movement does not depend on the speed of transmission components.

Tongda Wire Electric Waterproof Micro Switch Atuo Parts 125/250VAC Feature and Application

Waterproof microswitch is widely used in all kinds of cold, wet, dust and all kinds of harsh environment. Such as automobiles, spraying equipment, etc

Switch Technical Characteristics:
ITEM	Technical parameter		Value
1	Electrical Rating		0.1A/1A/3A 250VAC
2	Operating Force		1.0~2.5N
3	Contact Resistance		≤300mΩ
4	Insulation Resistance		≥100MΩ (500VDC)
5	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
6	Electrical Life		≥50000 cycles
7	Mechanical Life		≥100000 cycles
8	Operating Temperature		-25~105℃
9	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
10	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude : 1.5mm; Three directions :1H
11	Solder Ability :More than 80% of immersed part shall be covered with solder		Soldering Temperature : 235±5℃ Immersing Time :2~3S
12	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa
