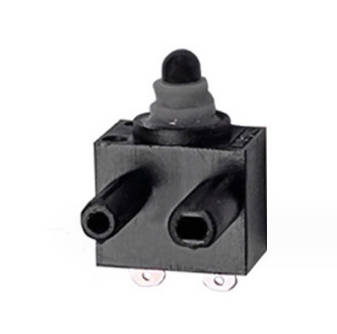

Waterproof Micro Switch Solenoid Valve

Waterproof Micro Switch Solenoid Valve by China manufacturers WEIPENG®. Our competitive pricing and popularity in the European and American markets make us an ideal long-term partner for your Household appliances ultra-small micro switch needs in China.

Model:FSK-20-403W

Send Inquiry

Product Description

WEIPENG® is a leading China manufacturers, suppliers and exporter of waterproof micro switch

Tongda Waterproof Micro Switch Solenoid Valve Introduction

Waterproof micro switches are suitable for control switches in smart homes. It can realize remote control of lights, curtains, door locks, etc.Waterproof micro switches are usually designed with low noise.When using a waterproof switch, avoid using too much or too little force. Avoid excessive vibration or collision of the waterproof switch. Avoid using damaged waterproof switches and replace them promptly. If any abnormality or malfunction occurs in the waterproof switch, it should be stopped immediately and seek professional maintenance help.

Tongda Wire Electric Factory Advantage

Tongda Factory usually have large-scale production equipment and technology that can efficiently complete large-volume production tasks. Having strong production capabilities can meet customer needs and remain competitive.Tongda Factory usually have abundant resources, including human resources, material resources, technical resources, etc. Adequate and optimal utilization of these resources can improve production efficiency and quality.

Tongda Waterproof Micro Switch Solenoid Valve (Specification)

Switch Technical Characteristics:
ITEM	Technical parameter		Value
1	Electrical Rating		0.1A/1A/3A 250VAC
2	Operating Force		1.0~2.5N
3	Contact Resistance		≤300mΩ
4	Insulation Resistance		≥100MΩ (500VDC)
5	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
6	Electrical Life		≥50000 cycles
7	Mechanical Life		≥100000 cycles
8	Operating Temperature		-25~105℃
9	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
10	Vibration Proof		Vibration Frequency :10~55HZ Amplitude : 1.5mm Three directions :1H
11	Solder Ability :More than 80% of immersed part shall be covered with solder		Soldering Temperature : 235±5℃ Immersing Time :2~3S
12	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa
