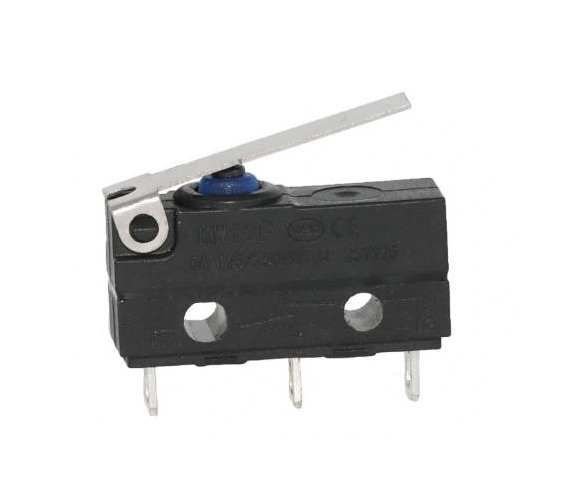

Waterproof Short Lever Micro Switch

Waterproof Short Lever Micro Switch has a small contact interval and a quick action mechanism, and the contact mechanism for switching action with the specified stroke and force is covered by the shell, and there is a transmission on the outside, and the shape is small

Model:FSK-18-262W

Send Inquiry

Product Description

WEIPENG® is a leading China manufacturers, suppliers and exporter of waterproof micro switch

Tongda Waterproof Short Lever Micro Switch Introduction

Waterproof micro switches are suitable for control switches in smart homes. It can realize remote control of lights, curtains, door locks, etc.Waterproof micro switches are usually designed with low noise. It makes no noticeable noise when switching on and off.Attention:When you use the waterproof micro switch.you have to pay attention about that Before installing the waterproof switch, read the installation instructions carefully to ensure correct installation.Also choose a waterproof switch model suitable for the environment to ensure the stability and reliability of the installation.

Tongda Waterproof Short Lever Micro Switch Application

Waterproof Micro Switch are suitable for many field.Such as Agricultural field. Electronic products and electrical equipment field. Ocean engineering and ship fields. Environmental monitoring and instrumentation field。In general, the waterproof micro switch is suitable for occasions that need to work in a wet, humid or water-polluted environment, and can effectively protect the normal operation of the switch, and has a wide range of application fields

Tongda Waterproof Short Lever Micro Switch Parameter (Specification)

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		0.1A 5(2)A 10(3)A 125/250VAC 0.1A 5A 36VDC
2	Operating Force		1.0~2.5N
3	Contact Resistance		≤300mΩ
4	Insulation Resistance		≥100MΩ (500VDC)
5	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
6	Electrical Life		≥50000 cycles
7	Mechanical Life		≥100000 cycles
8	Operating Temperature		-25~105℃
9	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
10	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
11	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
12	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa
