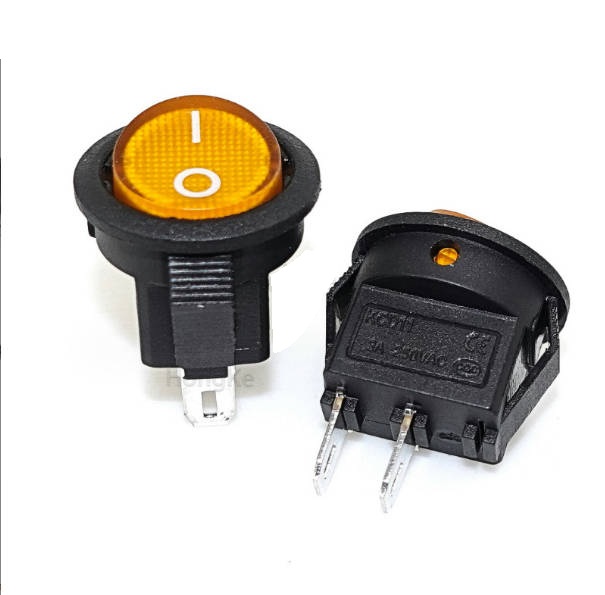

Electric Rocker Switch Boat Switch

Electric Rocker Switch Boat Switch by WEIPENG® is a renowned manufacturer and supplier of TongDa Light Bar Rocker Switch Spdt Rocker Switch for Coffeemaker in China, with years of experience in providing high-quality solutions. Our competitive pricing and growing popularity in the European and American markets make us the perfect long-term partner for all your On Ff On Round Rocker Switch requirements in China.

Model:GQ121-249

Send Inquiry

Product Description

WEIPENG® is a leading China Rocker Switch manufacturers, suppliers and exporter.

TongDa Electric Rocker Switch Boat Switch Coffeemaker

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		10(1.5)A/16(3)A/10(3)A 250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1500V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		0~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm: Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa

TongDa Electric Rocker Switch Boat Switch Application

These Boat-shaped switches, also known as wave switches, rocker switches, have the same structure as the toggle switch, but the knob handle is replaced with a ship type. Ship-shaped switches are often used as power switches for electronic equipment, and their contacts are divided into single-pole single-throw and double-pole-double-throw and other several, and some switches also have indicator lights, called lighted ship-shaped switches. The boat rocker switch has high reliability and can maintain stable performance under long-term and high-frequency use. They typically feature high-quality materials and advanced manufacturing processes to ensure their reliability and durability

TongDa Electric Rocker Switch Boat Switch Details
