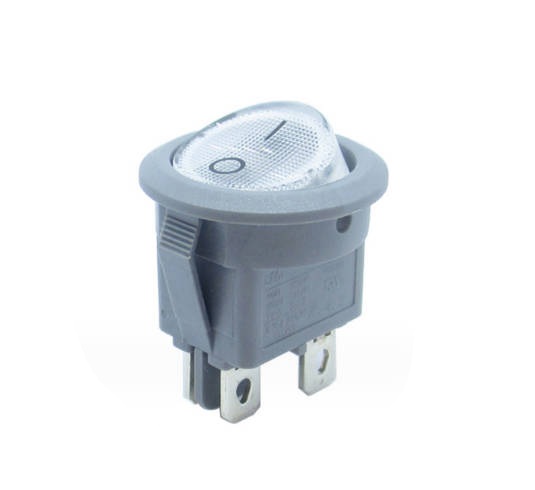

Grey with Light Rocker Switch

Grey with Light Rocker Switch by WEIPENG® is a renowned manufacturer and supplier of Rectangle Size Rocker Switch in China, with years of experience in providing high-quality solutions. Our competitive pricing and growing popularity in the European and American markets make us the perfect long-term partner for all your On Ff On Round Rocker Switch requirements in China.

Model:GQ116-1-292

Send Inquiry

Product Description

WEIPENG® is a leading China Rocker Switch manufacturers, suppliers and exporter.

Tongda Grey with Light Rocker Switch Switch

Rocker Switch is also known as waveform switch, stick switch, rocker switch, IO switch, power switch, because it looks like a boat, so called boat switch, its structure and toggle switch is roughly the same, only the knob is changed into a boat.The ambient temperature range of the rocker switch should meet the actual requirements. The installation method of rocker switch can be fixed or movable. The fixed installation of the rocker switch can be fixed with screws or snaps. Movable rocker switch installations can be supported using brackets or seats.

Tongda Grey with Light Rocker Switch Characteristics

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		10(1.5)A/16(3)A/10(3)A 250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1500V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		0~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm: Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa

Tongda Grey with Light Rocker Switch Feature And Application

These items belong to the category of small household appliances and other electronic products. They comprise of water dispensers, treadmills, printers, televisions, computer speakers, battery-operated cars and motorcycles, ion TVs, coffee makers, plugs, massage machines, electric fans, electric oil heaters, and several others.

Tongda Grey with Light Rocker Switch Details
