Illuminated Rocker Boat Switch

WEIPENG® has established itself as a Illuminated Rocker Boat Switch manufacturer and supplier in China, providing quality On Ff On Round Rocker Switch solutions for many years. Our competitive pricing and popularity in the European and American markets make us an ideal long-term partner for your On Ff On Round Rocker Switch needs in China.

Model:GQ111-327

Send Inquiry

Product Description

WEIPENG® is a leading China Rocker Switch manufacturers, suppliers and exporter.

TongDa Illuminated Rocker Boat Switch Coffeemaker

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		10(1.5)A/16(3)A/10(3)A 250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1500V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		0~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm: Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa

TongDa Illuminated Rocker Boat Switch Application

These Rocker switches, also known as wave switches, rocker switches, have the same structure as the toggle switch, but the knob handle is replaced with a ship type.Rocker switches usually have reliable connections.Boat-type switches can choose different switch action types, such as single-throw switch, double-throw switch, continuous switch, etc., to meet different usage requirements. It can achieve one-click operation, which is convenient and fast, and improves operating efficiency.

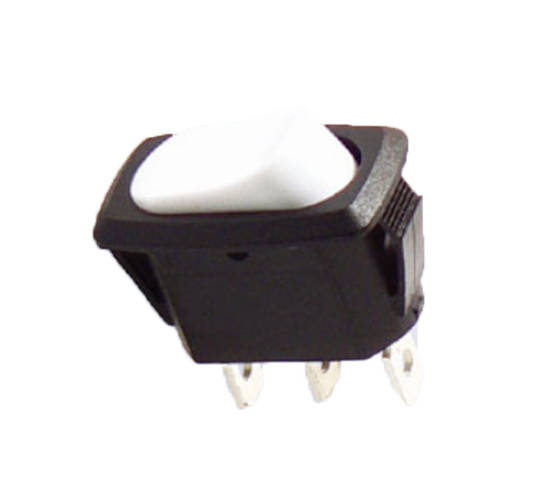

TongDa Illuminated Rocker Boat Switch Details
