Light Bar Rocker Switch Spdt Rocker Switch for Coffeemaker

WEIPENG® is a renowned manufacturer and supplier of TongDa Light Bar Rocker Switch Spdt Rocker Switch for Coffeemaker in China, with years of experience in providing high-quality solutions. Our competitive pricing and growing popularity in the European and American markets make us the perfect long-term partner for all your On Ff On Round Rocker Switch requirements in China.

Model:GQ111-1000

Send Inquiry

Product Description

WEIPENG® is a leading China TongDa Rocker Switch Customized Factory Supply Socket manufacturers, suppliers and exporter.

Light Bar Rocker Switch Spdt Rocker Switch for Coffeemaker

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		10(1.5)A/16(3)A/10(3)A 250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1500V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		0~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm: Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa

Light Bar Rocker Switch Spdt Rocker Switch for Coffeemaker Socket Application

These Boat-shaped switches, also known as wave switches, rocker switches, have the same structure as the toggle switch, but the knob handle is replaced with a ship type. Ship-shaped switches are often used as power switches for electronic equipment, and their contacts are divided into single-pole single-throw and double-pole-double-throw and other several, and some switches also have indicator lights, called lighted ship-shaped switches. Application range of ship switches: Ship switches have been widely used in household appliances. For example, the shadow of the boat-shaped switch can be seen in the water dispenser, treadmill, computer speaker, battery car, motorcycle, battery TV, coffee maker, row insert, massage machine, etc. in life.

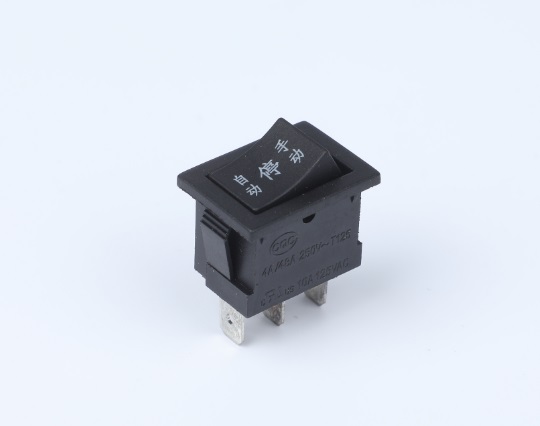

RockeLight Bar Rocker Switch Spdt Rocker Switch for Coffeemaker Details
