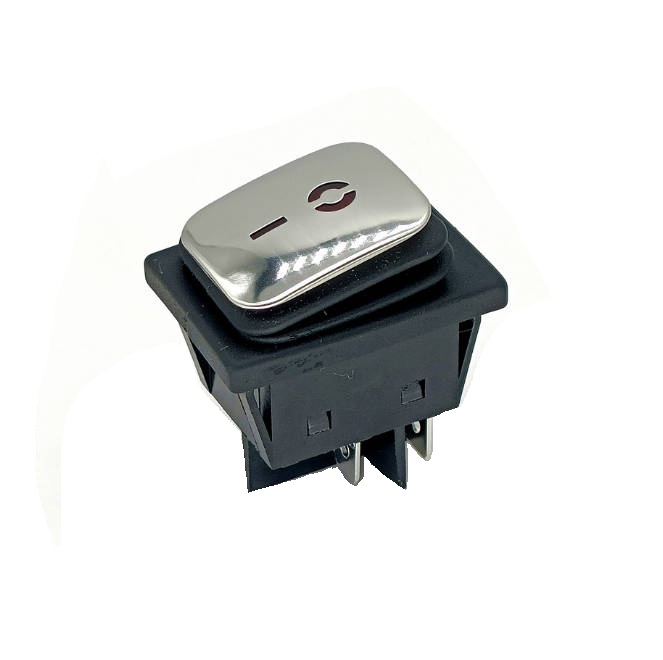

On Off Round Illuminated Rocker Switch

On Off Round Illuminated Rocker Switch by China manufacturers WEIPENG®. Our competitive pricing and popularity in the European and American markets make us an ideal long-term partner for your Household appliances ultra-small micro switch needs in China.

Model:GQ111-255

Send Inquiry

Product Description

WEIPENG® is a leading China Rocker Switch manufacturers, suppliers and exporter.

TongDa On Off Round Illuminated Rocker Switch Coffeemaker

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		10(1.5)A/16(3)A/10(3)A 250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1500V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		0~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm: Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa

TongDaOn Off Round Illuminated Rocker Switch Application

These Rocker switches, also known as wave switches, rocker switches, have the same structure as the toggle switch, but the knob handle is replaced with a ship type. Ship-shaped switches are often used as power switches for electronic equipment, and their contacts are divided into single-pole single-throw and double-pole-double-throw and other several, and some switches also have indicator lights, called lighted ship-shaped switches. Boat rocker switches usually have multiple functional options, such as unipolar, bipolar, single Throw, double Throw, etc., which can meet different circuit control needs.

TongDa On Off Round Illuminated Rocker Switch Details
