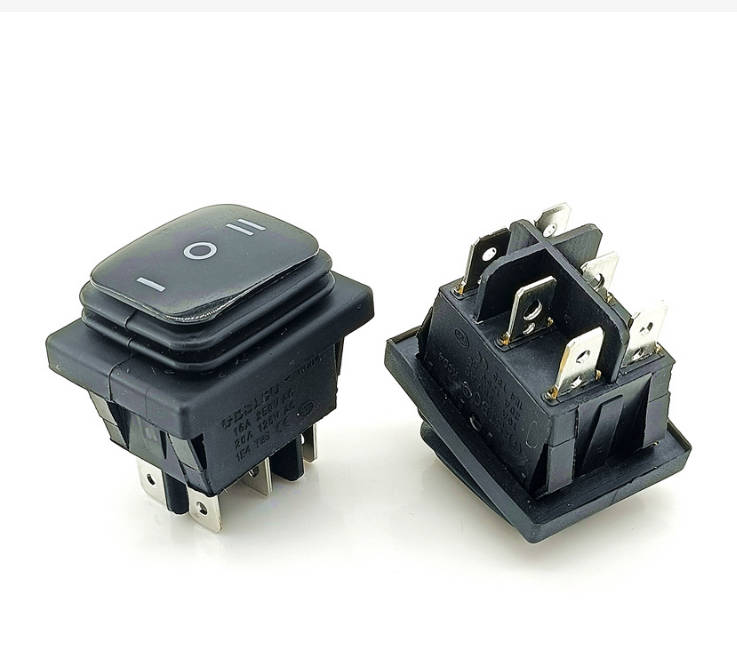

One-piece Waterproof Rocker Switch

WEIPENG® has established itself as a top-tier On One-piece Waterproof Rocker Switch manufacturer and supplier in China, providing quality On OFF On Round Rocker Switch solutions for many years. Our competitive pricing and popularity in the European and American markets make us an ideal long-term partner for your On Ff On Round Rocker Switch needs in China.

Model:GQ115-4-550

Send Inquiry

Product Description

WEIPENG® is a leading China Rocker Switch manufacturers, suppliers and exporter.

Tongda Wire Electric One-piece Waterproof Rocker Switch Introduction

Ship-type switches are also known as rocker switches. Its structure is the same as the toggle switch, except that the knob handle is replaced with a ship type. Ship-type switches are often used as power switches for electronic equipment, and their contacts are divided into single-pole, single-throw and double-pole, and some switches also have indicators.

Tongda Wire Electric One-piece Waterproof Rocker Switch problem

Sometimes the boat switch with the red light on may have the issue of not turning off or not springing back, or may cause the air switch to trip frequently. To troubleshoot this issue, first check the metal piece inside the switch, which has a spring fulcrum in the middle. If the spring is displaced or the plastic bracket is aged and deformed, the switch may not be flexible. In such cases, switch off the power and check if the plastic parts are damaged. If they are not damaged, the switch may be restored.
If the switch component has no issue and the switch still causes the air switch to trip frequently, check the neutral line inside the switch. It should be straight through, and the switch component has no relation to it. If the insulation layer of the neutral line through the switch is damaged, cut off the damaged section and rewire it, ensuring insulation.
The indicator's foot may also cause a short circuit, in which case rewiring is necessary.

Tongda Wire Electric One-piece Waterproof Rocker Switch Feature And Application

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		10(1.5)A/16(3)A/10(3)A 250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1500V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		0~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm: Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa
