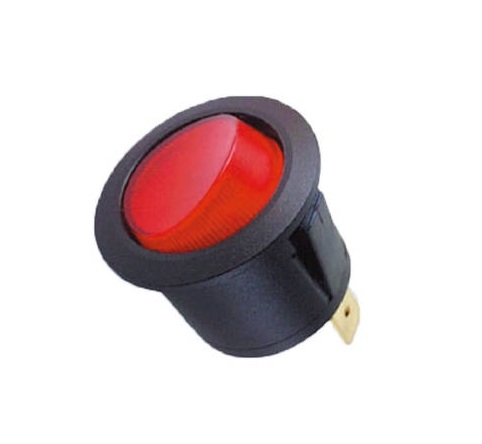

Red Momentary Rocker Switch

WEIPENG® has established itself as a Red Momentary Rocker Switch manufacturer and supplier in China, providing quality On Ff On Round Rocker Switch solutions for many years. Our competitive pricing and popularity in the European and American markets make us an ideal long-term partner for your On Ff On Round Rocker Switch needs in China.

Model:GQ116-1-05_322

Send Inquiry

Product Description

WEIPENG® is a leading Rocker Switch manufacturers, suppliers and exporter.

Tongda Red Momentary Rocker Switch Introduction

On Ff On Round Rocker Switch is commonly used as the power switch of electronic equipment. Its contacts are divided into single pole single throw and double pole double throw, etc. Some switches also have indicators, full light and point light, etc.It usually has lower power consumption during operation, is energy-saving and environmentally friendly, and helps reduce energy consumption. Ship-shaped switches can be customized according to customer needs, including size, color, logo, etc., to meet individual needs.

Tongda Red Momentary Rocker Switch Feature And Application

These products are classified as small household appliances and other electronic devices. They include water dispensers, treadmills, printers, televisions, computer speakers, battery-powered cars and motorcycles, ion TVs, coffee makers, plugs, massage machines, electric fans, electric oil heaters, and more.

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		10(1.5)A/16(3)A/10(3)A 250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1500V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		0~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm: Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa
