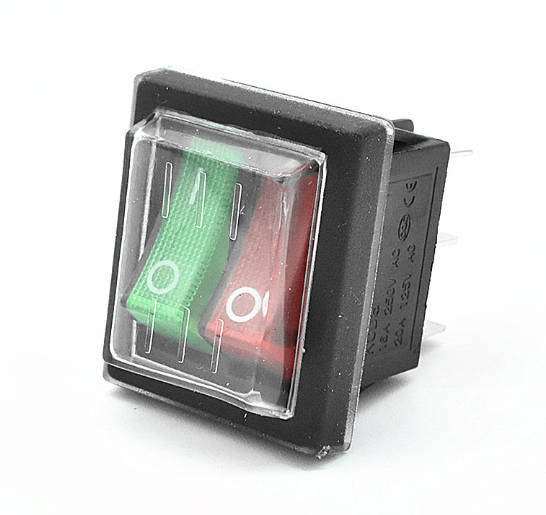

Rocker Switch Double Body Waterproof

Rocker Switch Double Body Waterproof by China manufacturers WEIPENG®. Our competitive pricing and popularity in the European and American markets make us an ideal long-term partner for your Household appliances ultra-small micro switch needs in China.

Model:GQ111-399

Send Inquiry

Product Description

WEIPENG® is a leading China Rocker Switch manufacturers, suppliers and exporter.

TongDa Rocker Switch Double Body Waterproof Specification

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		10(1.5)A/16(3)A/10(3)A 250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1500V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		0~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm: Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa

Tongda Wire Electric Factory Advantage

Tongda Factory usually have large-scale production equipment and technology that can efficiently complete large-volume production tasks. Having strong production capabilities can meet customer needs and remain competitive.Tongda Factory usually have abundant resources, including human resources, material resources, technical resources, etc. Adequate and optimal utilization of these resources can improve production efficiency and quality.

TongDa Rocker Switch Six Pin White Details
