Rocker Switch Yellow Socket

WEIPENG® is a renowned manufacturer and supplier of TongDa Rocker Switch Yellow Socket in China, with years of experience in providing high-quality solutions. Our competitive pricing and growing popularity in the European and American markets make us the perfect long-term partner for all your On Ff On Round Rocker Switch requirements in China.

Model:GQ115-1N-2-500

Send Inquiry

Product Description

WEIPENG® is a leading China TongDa Rocker Switch manufacturers, suppliers and exporter.

TongDa Rocker Switch Yellow Socket Feature

Ship-type switches are also known as rocker switches. Its structure is the same as the toggle switch, except that the knob handle is replaced with a ship type. Ship-type switches are often used as power switches for electronic equipment, and their contacts are divided into single-pole, single-throw and double-pole, and some switches also have indicators.

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		10(1.5)A/16(3)A/10(3)A 250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1500V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		0~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm: Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa

TongDa Rocker Switch Yellow Socket Application

These items belong to the category of small household appliances and other electronic products. They comprise of water dispensers, treadmills, printers, televisions, computer speakers, battery-operated cars and motorcycles, ion TVs, coffee makers, plugs, massage machines, electric fans, electric oil heaters, and several others.

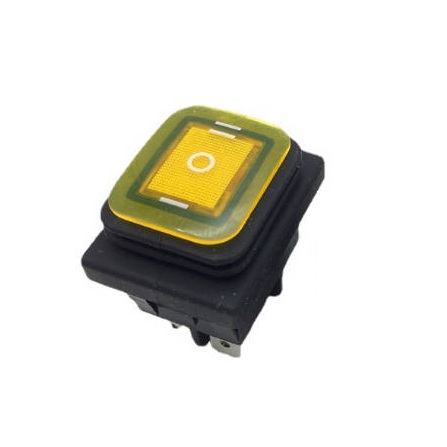

TongDa Rocker Switch Yellow Socket Details
