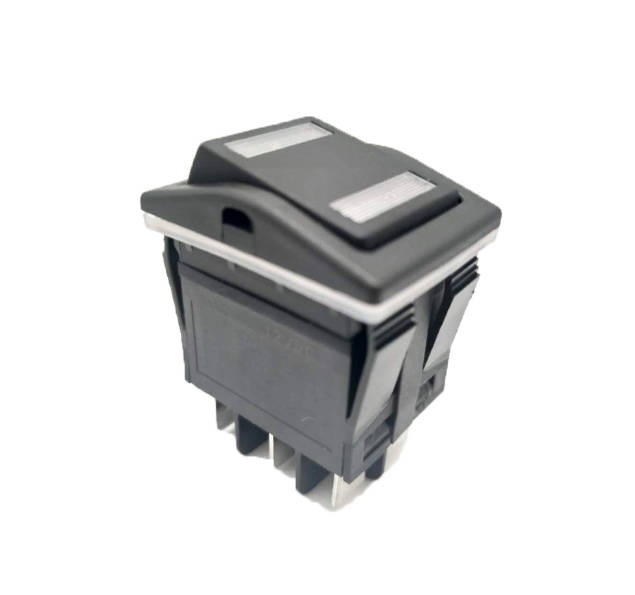

Waterproof Rocker Built-in Switch

Waterproof Rocker Built-in Switch by WEIPENG® is a renowned manufacturer and supplier of Rectangle Size Rocker Switch in China, with years of experience in providing high-quality solutions. Our competitive pricing and growing popularity in the European and American markets make us the perfect long-term partner for all your On Ff On Round Rocker Switch requirements in China.

Model:GQ111-280

Send Inquiry

Product Description

WEIPENG® is a leading China Rocker Switch manufacturers, suppliers and exporter.

TongDa Waterproof Rocker Built-in Switch Coffeemaker

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		10(1.5)A/16(3)A/10(3)A 250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1500V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		0~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm: Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa

TongDa Waterproof Rocker Built-in Switch Application

These Rocker switches, also known as wave switches, rocker switches, have the same structure as the toggle switch, but the knob handle is replaced with a ship type. A rocker switch usually consists of one or more toggle devices. Rocker switches are used to control the on and off of electrical or electronic equipment. Rocker switches are usually made of metal or plastic materials.

TongDa Waterproof Rocker Built-in Switch Details
